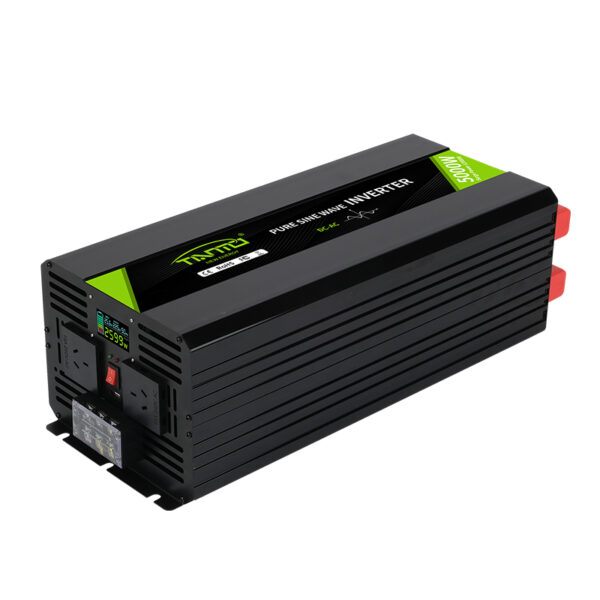

TP-5000 off grid high frequency 5000w pure sine wave solar power inverter for home

Features:

5000W Pure Sine Wave Off-Grid High-Frequency Single-Phase DC12/24/48V to AC110/220V  Solar 5000w Solar Power Inverter For Home.

5000W Solar Power Inverter For Home Off-Grid High-Frequency Single-Phase Solar Power Inverter is the ideal energy solution for off-grid living, outdoor adventures, and emergency backup power needs.

Engineered with pure sine wave output, it delivers stable, grid-like electricity that safely powers sensitive electronics such as laptops, smartphones, and small household appliances without causing damage or interference. As a high-frequency inverter, it boasts a compact, lightweight design—easy to install and transport, making it perfect for RVs, camping trips, and remote cabins.

Solar power inverter for home designed for off-grid solar systems, it efficiently converts DC power from solar panels or batteries into reliable AC power, maximizing energy utilization to cut reliance on traditional grids. Its single-phase output aligns with standard household electrical requirements, ensuring seamless compatibility with most daily devices.

Built with durable components, this inverter features over-voltage, over-current, over load protection, low voltage protection, over temperature protection and short-circuit protection, protection guaranteeing safe and long-lasting performance even in harsh environments. Whether you’re off the grid or need a reliable backup, this inverter offers unbeatable efficiency, portability, and peace of mind.

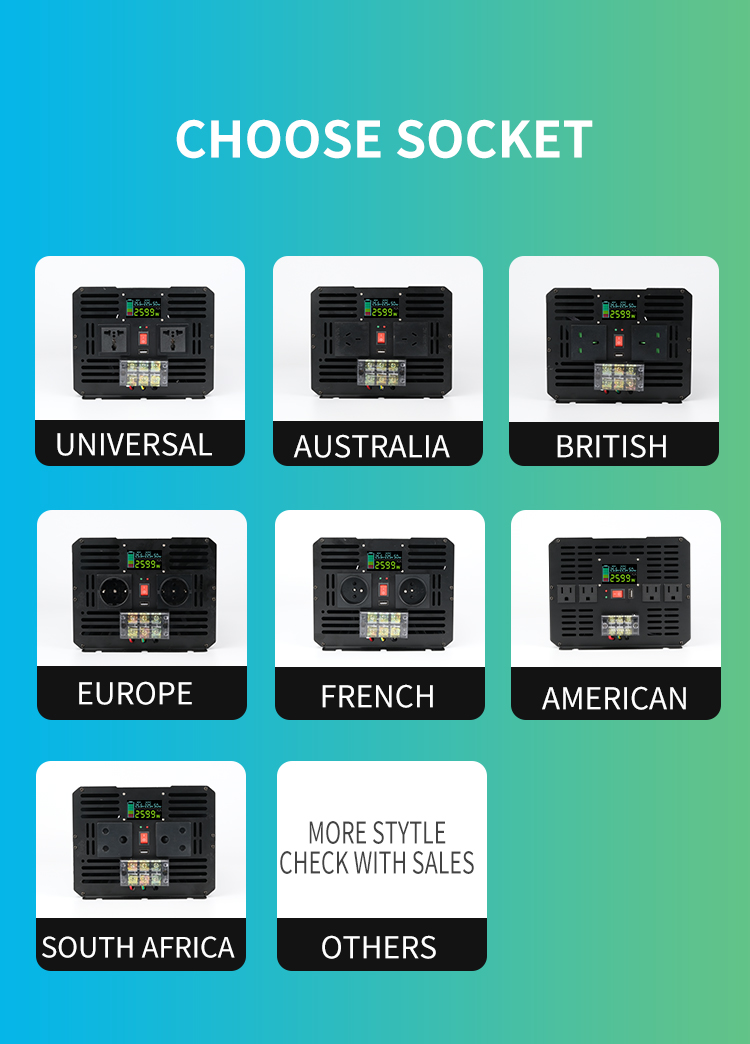

This 5000w pure sine wave power inverter offers multiple socket type options tailored to different countries and usage scenarios. Whether for household, outdoor, or industrial off-grid applications in regions like North America, Europe, Australia, or Asia, the matched socket configurations ensure seamless compatibility with local electrical standards, making it versatile for residential backup power, RV travel, solar system integration, and other on-the-go power needs.

Parameters:

Technical Parameters for 5000W Solar Power Inverter For Home
Model	TP5000W-12V	TP5000W-24V	TP5000W-48V
Output power	5000W
Peak power	10000W
Input voltage(Range)	DC12V（9.5-15.5V）	DC24V（19-31V）	DC48V（38-61V）
Output voltage(Single)	（100VAC/110VAC/120VAC/220VAC/230VAC/240VAC）±5%
Unload current less than	≤1.2A	≤0.6A	≤0.3A
Output frequency	50Hz or 60Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD≤3%( Pure resistive Load))
USB	18W  Fast charging
Max.output efficiency	88%	90%	92%
Low voltage protection	Pre-alarm (alarm off after 1 sound), LED Red light on, voltage contiously reduce and shutdown
Over voltage protection	Pre-alarm (alarm off after 2 sounds), LED Red light on,  shutdown
Over load protection	Continuous alarm, LED Red light on, shutdown
Over temperature protection	Pre-alarm (alarm off after 3 sounds), tempurature continously rise, LED Red light on, shutdown
Short circuit protection	Perfect protection and no damage the circuit
Input reverse polarity protection	Fuse burn-out
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	9.5±0.5V	19±0.5V	38±1V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.5V±0.5V	29V±0.5V	58V±1V
Working temperature	-20°- +50°
Product Dimension(mm)	550*205*165
Mounting Size(mm)	475*130
Product Lable Size(mm)	450*75
Packing(mm)	600*300*250
Net./gross weight(kgs)	10.2/11.5
QTY/CTN	1 PCS
Meas./CTN(mm)	600*300*250
Gross weight/CTN(kgs)	11.5
Warranty	24Months
DC Cable(mm²)	25*2	25	16
Cooling method	Intelligent air cooling
