Introduction: The Backbone of Modern Off-Grid and Backup Power

In an era where energy independence and reliability are paramount, the role of power inverters has transcended simple utility. They have become the critical bridge between stored renewable energy and the modern appliances that define our daily lives. Among the myriad of power conversion solutions available, the 8000W pure sine wave inverter stands out as a heavy-duty titan, designed for users who demand uncompromising performance. Whether for a remote off-grid cabin, a recreational vehicle traversing the wilderness, or a residential backup system protecting against grid failures, the capacity to deliver 8000 watts of continuous power is a game-changer.

This article provides an in-depth technical analysis and application guide for the TP8000W series (specifically models TP8000W-48V, TP8000W-60V, and TP8000W-72V). By examining its robust specifications, advanced protection mechanisms, and versatile applications, we will explore why this specific class of inverter is essential for high-load energy systems.

Technical Architecture and Performance Specifications

The heart of any inverter is its ability to convert Direct Current (DC) from batteries into Alternating Current (AC) usable by household appliances. The TP8000W series distinguishes itself through high efficiency and waveform purity.

1. Pure Sine Wave Technology
   The most critical specification of the TP8000W series is its “Pure Sine Wave” output. Unlike modified sine wave inverters, which produce a choppy, stair-step approximation of AC power, the TP8000W generates a smooth, oscillating wave identical to—or often cleaner than—utility grid power. The technical parameters indicate a Waveform Distortion (THD) of le 3% with a pure resistive load. This low distortion is vital for sensitive electronics. It ensures that audio equipment remains hum-free, medical devices operate safely, and variable-speed motors (like those in refrigerators and pumps) run quietly and efficiently without overheating.
2. Power Capacity and Surge Capability
   As the name suggests, the unit boasts a continuous output power of 8000W. However, real-world application requires handling startup surges. Motors and compressors often require 2 to 3 times their running wattage to start. The TP8000W addresses this with a massive Peak Power rating of 16,000W. This surge capacity allows the inverter to momentarily handle the heavy inrush current of large appliances, such as central air conditioners or well pumps, without tripping or shutting down.
3. Voltage Versatility and Efficiency
   The series offers flexibility in battery bank configuration, available in 48V, 60V, and 72V DC input models.

• TP8000W-48V: Accepts a range of 38-61V.
• TP8000W-60V: Accepts a range of 45-82V.
• TP8000W-72V: Accepts a range of 62-90V.

This wide input range accommodates the natural voltage fluctuation of lead-acid and lithium battery banks during discharge and charge cycles. Despite the massive power throughput, the unit maintains a maximum output efficiency of 92%. This high efficiency minimizes energy loss as heat, ensuring that more of the stored battery energy is actually used to power your devices. The no-load current draw is impressively low (le 0.6A), preserving battery life when the system is idle.

Advanced Safety and Protection Systems

High-power electrical systems carry inherent risks. The TP8000W series integrates a comprehensive suite of intelligent protection mechanisms to safeguard both the inverter and the connected loads. These features are automated, reacting in milliseconds to abnormal conditions.

• Low Voltage Protection: This is crucial for battery longevity. If the input voltage drops below a safe threshold (e.g., 38V ± 1V for the 48V model), the inverter triggers an audible alarm (BI-BI-BI) and flashes a red LED. If the voltage continues to drop, the unit shuts down to prevent deep-discharge damage to the batteries. It automatically resumes operation only when the voltage recovers to a safe level (e.g., 44V ± 1V).
• Over Voltage Protection: Conversely, if the input voltage spikes (e.g., due to a charging error or lightning surge) beyond limits like 62V (for the 48V model), the unit halts operation to prevent internal component explosion or fire.
• Overload and Short Circuit Protection: If the connected load exceeds 8000W continuously, or if a short circuit occurs at the output, the inverter enters a continuous alarm state (BIBIBIBI…) and shuts down. This prevents wiring fires and component destruction.
• Thermal Management: Operating at 8000W generates significant heat. The unit employs “Intelligent Air Cooling.” While specific fan curves aren’t detailed, this typically implies variable speed fans that ramp up as internal temperatures rise. If the temperature exceeds safe operating limits (-20°C to +50°C ambient), the thermal protection kicks in, shutting the unit down until it cools.
• Input Reverse Polarity Protection: A common installation error is connecting the positive and negative battery cables incorrectly. The TP8000W protects against this via a fuse burn-out mechanism, sacrificing a replaceable fuse to save the expensive internal circuitry.

Physical Design and Installation Considerations

The TP8000W is built for durability. The unit measures 530mm x 290mm x 115mm and weighs approximately 9.56kg (net). This compact footprint allows it to be mounted in tight spaces, such as utility closets or vehicle cargo areas, using the provided mounting holes (400mm x 270mm spacing).

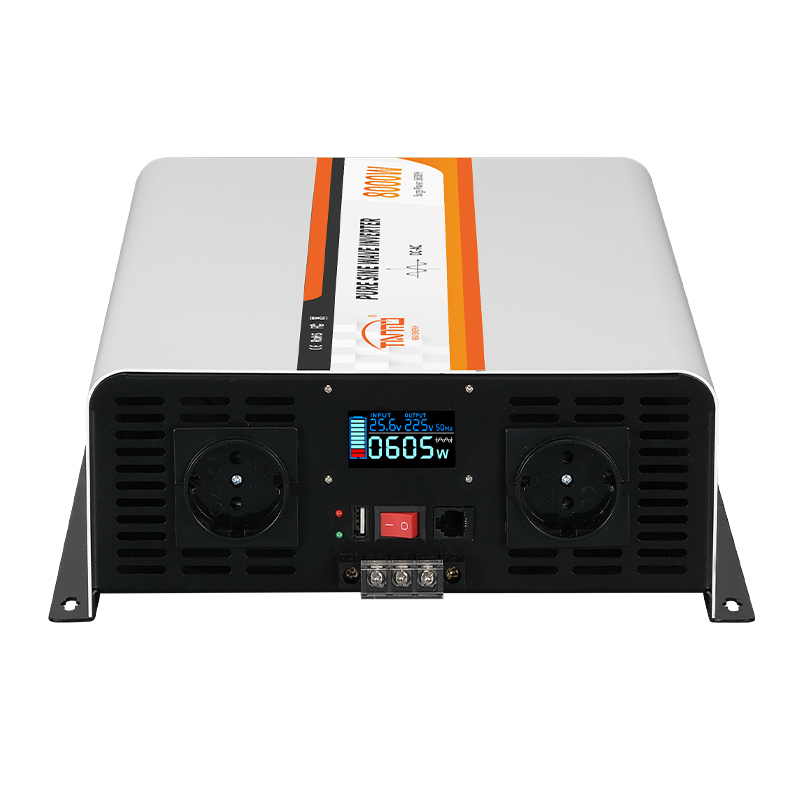

The rear panel design, visible in the product images, features dual cooling fans and robust connection terminals. For a device of this magnitude, cabling is critical. The specifications recommend substantial DC cable sizes to minimize voltage drop and resistive heating:

• 25mm² cables for the 48V model.
• 16mm² cables for the 60V model.
• 10mm² cables for the 72V model.

Adhering to these cable requirements is mandatory for safety and performance. The unit also includes a USB port (5V 2A for the 48V model, 5V 1A for others), providing a convenient charging station for mobile devices directly from the main power bus.

Real-Life Applications: Where the 8000W Pure Sine Wave Inverter Shines

The versatility of the TP8000W series allows it to serve as the power heart for various demanding environments. Here are three primary scenarios where this inverter excels.

1. Whole-House Off-Grid Living
   For homes located far from the utility grid, the TP8000W Pure Sine Wave Inverter serves as the primary power source. An 8000W Pure Sine Wave Inverter capacity is sufficient to run a standard household’s essential and luxury loads simultaneously.

• Kitchen: It can easily handle induction cooktops (often 2000W-3000W), microwaves, and full-size refrigerators. The pure sine wave ensures the compressor in the fridge runs efficiently, extending its lifespan.
• Laundry: Washing machines and even electric dryers can be powered, provided the total load stays under the 8000W limit.
• Comfort: Window AC units or small ductless mini-split systems can be operated, making off-grid living comfortable even in summer.

1. Heavy-Duty RV and Marine Applications
   In the world of recreational vehicles and boats, space and weight are at a premium, but power demands are high. The TP8000W allows an RV to function like a stationary home.

• Appliance Usage: Unlike smaller inverters that restrict users to LED lights and phone chargers, this unit allows RVers to use hair dryers, coffee makers, and electric kettles while boondocking (camping without hookups).
• Entertainment: Large screen TVs, gaming consoles, and surround sound systems require clean power to avoid interference. The <3% THD ensures a premium entertainment experience.
• Tool Usage: For work trucks or mobile workshops, the inverter can power heavy-duty tools like table saws, air compressors, and welders (depending on the welder’s duty cycle), turning a vehicle into a mobile job site.

1. Emergency Home Backup System
   Even grid-tied homes face outages due to storms or infrastructure failures. When paired with a battery bank and a solar charging array, the TP8000W acts as a massive Uninterruptible Power Supply (UPS).

• Medical Needs: For individuals relying on home medical equipment (CPAP machines, oxygen concentrators, dialysis machines), the pure sine wave output is non-negotiable for safety.
• Sump Pumps: In flood-prone areas, keeping a sump pump running during a power outage is critical. The surge capacity of the TP8000W ensures the pump motor starts reliably every cycle.
• Home Office: It allows for the continued operation of computers, servers, and internet routers, ensuring productivity doesn’t halt during a blackout.

Conclusion

The TP8000W series represents a robust intersection of high capacity and refined engineering. By delivering 8000W of continuous, pure sine wave power with a 16,000W surge capability, it removes the compromises usually associated with off-grid or backup power. Its comprehensive protection suite—from low voltage cutoffs to thermal shutdowns—ensures that this power is delivered safely, protecting both the investment in the inverter and the valuable appliances it powers.

Whether you are designing a sustainable off-grid homestead, outfitting a luxury expedition vehicle, or securing your home against the unpredictability of the weather, the TP8000W 8000W pure sine wave inverter provides the reliable, high-fidelity energy foundation necessary for modern life. As we move toward a more decentralized energy future, devices like the TP8000W will continue to play a pivotal role in empowering users to take control of their electricity needs.
